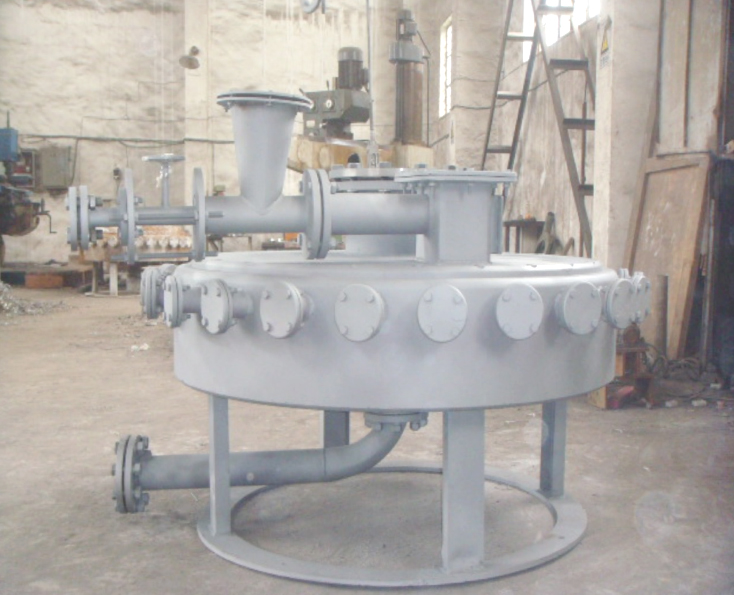

Ultra-fine ultra-micro steam dual jet flat equipment

Product details




ZJ ultra-fine and ultra-micro pulverizer steam double jet flat airflow pulverizer is our company according to the crushing requirements of titanium dioxide, namely narrow particle size distribution, less inclusion, good dispersion; And titanium dioxide material viscosity, poor fluidity, fine particle size and easy to adhere to the wall and other characteristics, the development of titanium dioxide final grinding special steam flow mill.


At present, domestic and foreign titanium dioxide manufacturers choose flat type (also known as horizontal disc type) airflow mill with self-grading function as the final crushing equipment of titanium dioxide. And the use of superheated steam as the crushing medium, crushing at high temperature, can improve the dispersion of titanium dioxide application, increase the mobility of titanium dioxide. Low energy consumption, only 1/3 ~ 2/3 of the compressed air.


ZJ steam double jet flat airflow pulverizer can be used to improve the dispersion of titanium dioxide in different application systems. As the most important equipment for airflow crushing, the quality of airflow crusher directly determines the quality of products. Therefore, the airflow crusher is required to be designed reasonably, well-made, with large impact kinetic energy, good grading effect, abrasion resistance and high temperature resistance.



Equipment features:


Compared with the traditional flat-type airflow crusher, it has been greatly improved and improved.The machine makes full use of all the energy of the superheated steam, and the materials are in the same equipment after two times of crushing and grading, so that the product particle size is finer, the particle size distribution is narrower and the quality is

better.

1. The special inlaying structure of superhard wear-resisting material used in the lining greatly improves the service life and crushing effect of the airflow crusher.

2. High fineness: d90=0.3~10 m, narrow particle size distribution and no large particles.

3. High grinding efficiency, low energy consumption, 30% energy saving compared with other types of airflow grinding;

4, using Al2O3, SiC or Pu (plutonium) as easy wear parts, low wear, less product pollution, can be processed without iron pollution powder products and mohs grade 9 materials, especially suitable for the production of titanium dioxide chloride method;

5. Compact structure, low noise and relatively low cost.

6. ZJ steam double jet flat steam flow crusher adopts pipe automatic classification, which is easy to realize when superheated steam is used as working medium for crushing.

7. The inner lining of the crushing cavity is made of super wear-resisting and impact wear-resisting material, and the special inlay can cushion the structure, which effectively overcomes the problem that wear-resisting material is easy to break up and ensures its service life.


Technological process


application area

  The final grinding of titanium dioxide

Main Parameters

Model

Medium temperature

Gas solid ratio

Product Size

Capacity

Medium pressure

ZJ300

280-3100C

1.3-1.5:1

0.3-10µm

10-50kg/h

1.6-2.5MPa

ZJ800

280-3100C

1.3-1.5:1

0.3-10µm

200-400kg/h

1.6-2.5MPa

ZJ1000

280-3100C

1.3-1.5:1

0.3-10µm

1.5-2t/h

1.6-2.5MPa

ZJ1100

280-3100C

1.3-1.5:1

0.3-10µm

2-3t/h

1.6-2.5MPa

ZJ1200

280-3100C

1.3-1.5:1

0.3-10µm

3-4t/h

1.6-2.5MPa

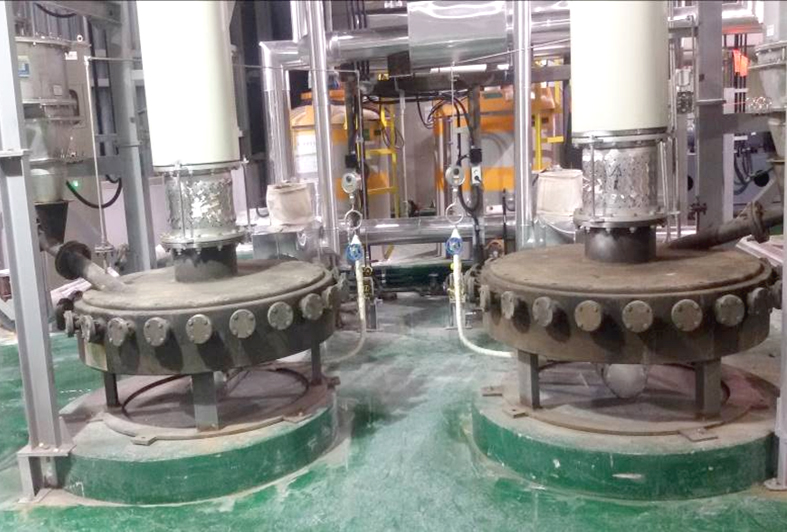

The application case:
